wrong temperature on macpro1.1 with x5355

[sak99]

Hi,

Macs fan control shows incorrect cpu core temperature on a apple macpro1.1 with upgraded cpu's (changed to xeon 5355). xeon 5355 is not recognized by apple firmware. Do you think this is a bug with macs fan control or a consequence of the fact that I use unrecognized cpu's?

Some more details: When cpu's are under load, macs fan control shows lower core temperatures.

Thanks

--
Note: this is the technical info from the about dialog:

Macs Fan Control 1.1.12.1, MacPro1,1, Windows 7

Fans:
CPU_MEM-min{500}curr{999}max{2900}mode{1,999}
IO-min{500}curr{999}max{2900}mode{1,999}
EXHAUST-min{500}curr{998}max{2900}mode{1,999}
PS-min{800}curr{1263}max{2800}mode{2,Tp0C,42,50}


TempSensors:
TA0P (Ambient) - 30
TC0C (CPU A Core 0) - 46
TC0P (CPU Proximity) - 43.75
TC1C (CPU A Core 1) - 0
TC2C (CPU B Core 0) - 42
TC3C (CPU B Core 1) - 0
TCAH (CPU A HeatSink) - 38.5625
TCBH (CPU B HeatSink) - 40.75
TH0P (Drive Bay 0) - 32.5
TH1P (Drive Bay 1) - 31
TH2P (Drive Bay 2) - 33
TH3P (Drive Bay 3) - 32.5
THTG () - 45
TM0P () - 41
TM0S (DIMM Module 1) - 60
TM1P () - 45
TM1S (DIMM Module 2) - 61.5
TM2P () - 46
TM2S () - -1
TM3S () - -1
TM8P () - 38
TM8S () - -1
TM9P () - 40
TM9S () - -1
TMAP () - 41
TMAS () - -1
TMBS () - -1
TN0H (IOH HeatSink) - 63
TS0C () - 40
Tp0C (PSU1 Inlet Ambient) - 44
Tp1C (PSU1 Secondary Component) - 42.1406
Tv0S () - 45.7344
Tv1S () - 43.3906

and this is what happens when cpu's are under load for a minute:

Macs Fan Control 1.1.12.1, MacPro1,1, Windows 7

Fans:
CPU_MEM-min{500}curr{999}max{2900}mode{1,999}
IO-min{500}curr{998}max{2900}mode{1,999}
EXHAUST-min{500}curr{998}max{2900}mode{1,999}
PS-min{800}curr{1420}max{2800}mode{2,Tp0C,42,50}


TempSensors:
TA0P (Ambient) - 30
TC0C (CPU A Core 0) - 27
TC0P (CPU Proximity) - 50.5625
TC1C (CPU A Core 1) - 0
TC2C (CPU B Core 0) - 24
TC3C (CPU B Core 1) - 0
TCAH (CPU A HeatSink) - 46.3125
TCBH (CPU B HeatSink) - 48.9375
TH0P (Drive Bay 0) - 32.5
TH1P (Drive Bay 1) - 31.5
TH2P (Drive Bay 2) - 33
TH3P (Drive Bay 3) - 33
THTG () - 45
TM0P () - 42
TM0S (DIMM Module 1) - 61
TM1P () - 46
TM1S (DIMM Module 2) - 62.5
TM2P () - 46
TM2S () - -1
TM3S () - -1
TM8P () - 40
TM8S () - -1
TM9P () - 41
TM9S () - -1
TMAP () - 42
TMAS () - -1
TMBS () - -1
TN0H (IOH HeatSink) - 63.5
TS0C () - 46
Tp0C (PSU1 Inlet Ambient) - 45
Tp1C (PSU1 Secondary Component) - 43.5625
Tv0S () - 45.2109
Tv1S () - 43.5898


and this is a few minutes later with the same load:

Macs Fan Control 1.1.12.1, MacPro1,1, Windows 7

Fans:
CPU_MEM-min{500}curr{999}max{2900}mode{1,999}
IO-min{500}curr{998}max{2900}mode{1,999}
EXHAUST-min{500}curr{999}max{2900}mode{1,999}
PS-min{800}curr{1624}max{2800}mode{2,Tp0C,42,50}


TempSensors:
TA0P (Ambient) - 30.5
TC0C (CPU A Core 0) - 22
TC0P (CPU Proximity) - 55.8125
TC1C (CPU A Core 1) - 0
TC2C (CPU B Core 0) - 17
TC3C (CPU B Core 1) - 0
TCAH (CPU A HeatSink) - 51.0625
TCBH (CPU B HeatSink) - 54.9375
TH0P (Drive Bay 0) - 32.5
TH1P (Drive Bay 1) - 31.5
TH2P (Drive Bay 2) - 33
TH3P (Drive Bay 3) - 33
THTG () - 45
TM0P () - 45
TM0S (DIMM Module 1) - 62.5
TM1P () - 48
TM1S (DIMM Module 2) - 65
TM2P () - 47
TM2S () - -1
TM3S () - -1
TM8P () - 43
TM8S () - -1
TM9P () - 43
TM9S () - -1
TMAP () - 43
TMAS () - -1
TMBS () - -1
TN0H (IOH HeatSink) - 65.5
TS0C () - 50
Tp0C (PSU1 Inlet Ambient) - 46
Tp1C (PSU1 Secondary Component) - 45.7031
Tv0S () - 44.7812
Tv1S () - 43.8906

At this point open hardware monitor (another software) shows temperatures around 77 degress for cpu a, and values above 80 degrees for cpu b which I believe to be more sensible.

Note: the machine has a forced install of newer (unsupported) bootcamp drivers for windows 7. Officially supported drivers are available only for windows xp and windows vista (and that was the reason that I have installed macs fan control - I dont think that unsupported new bootcamp drivers make a sensible control of the fans).

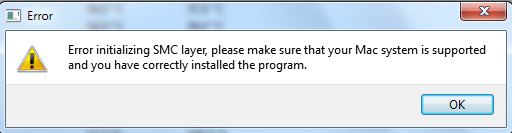

Note: An error message that appears at system startup which I believe to originate from macs fan control is in the attachment.

[Steven]

sak99
Thank you for the info! This issue will be fixed in 1.2 version soon

Please run this test now:
http://forums.crystalidea.com/viewtopic.php?f=11&t=1073

[sak99]

Hi,

Unfortunately the commands failed as follows:

sak99s-Mac-Pro:macsfancontroltest_runTest sak99$ sudo kextload macsfancontrol.kext
/Users/sak99/Desktop/macsfancontroltest_runTest/macsfancontrol.kext failed to load - (libkern/kext) requested architecture/executable not found; check the system/kernel logs for errors or try kextutil(8).

I don't know if I did anything wrong or if it's just that kextload failed because the OS does not recognize the cpu (all that it recognizes is that the machine has 2 processors and a total of 8 cores, but the processor is unknown.)

Thanks,

[Steven]

This tool requires OS X 10.8

Please post a screenshot of MFC window when CPU A/B is loaded at 100%

[sak99]

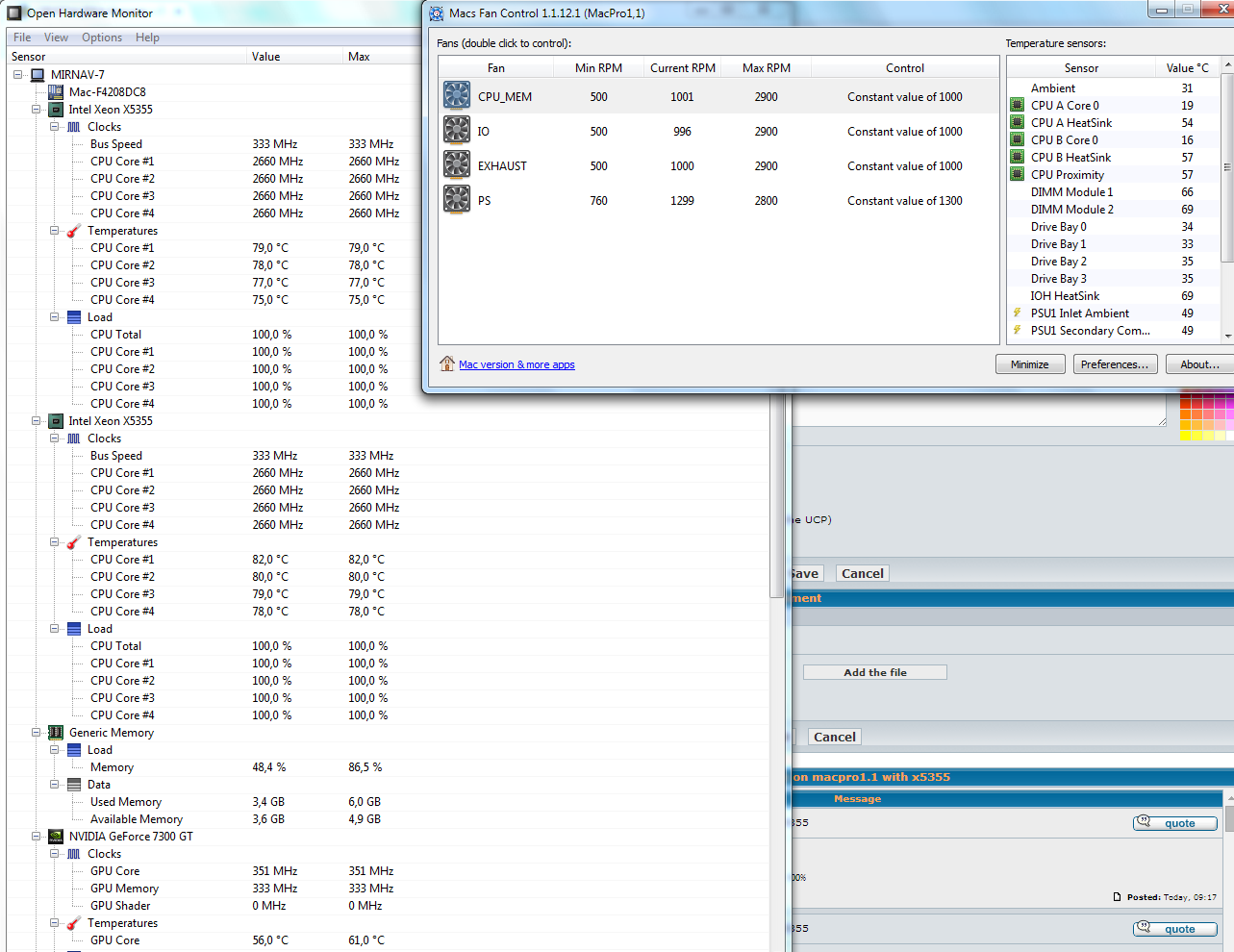

OK, let's see what I can do. Pictures are in the attachment.

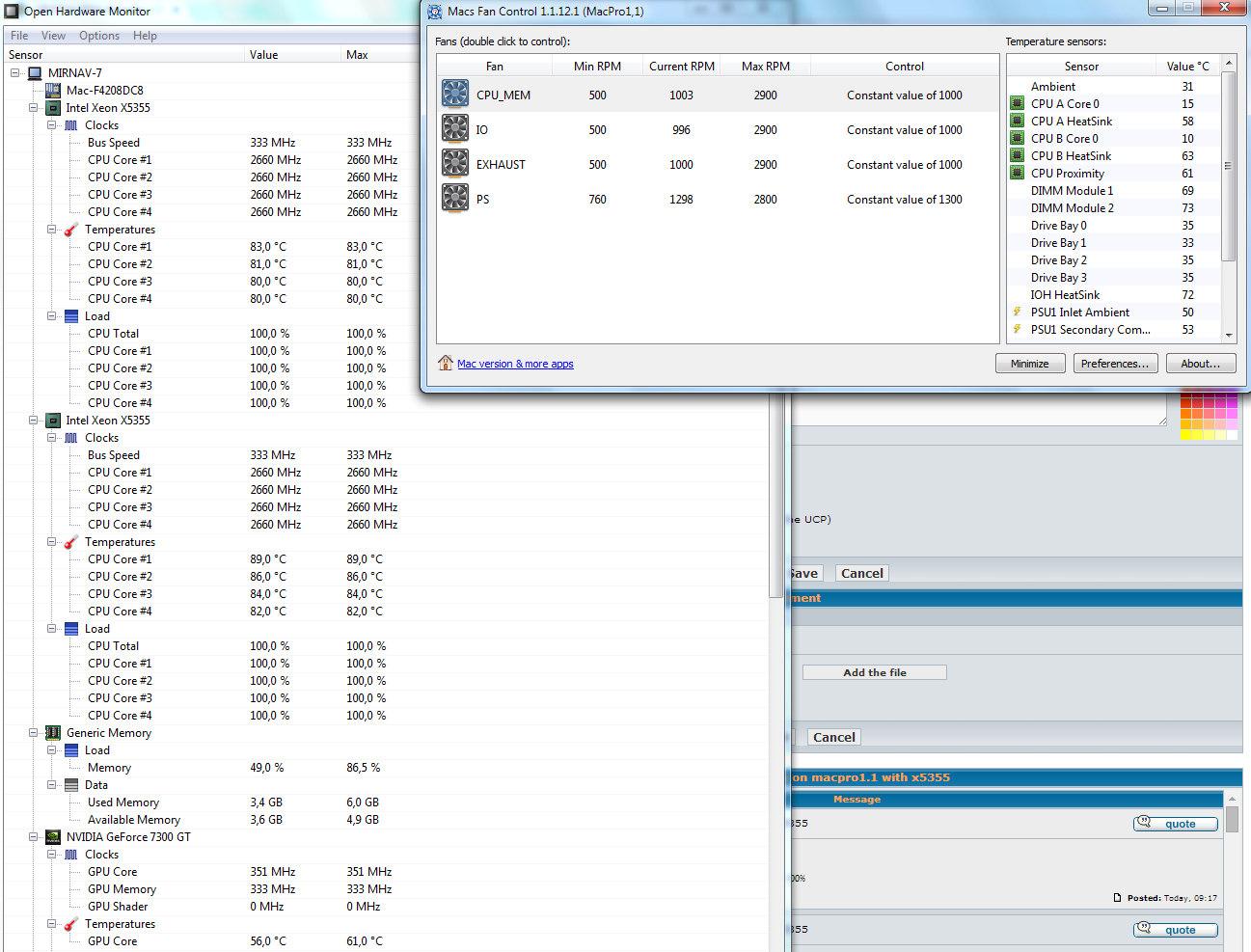

The first one (which is displayed second for some reason) was taken roughly one minute after starting POV-ray with their benchmark image, and the second one was taken a few minutes later.

Kind Regards,

[sak99]

Here's another (at the end of rendering task):

[Steven]

sak99
Thank you, the issue will be fixed soon in 1.2 version

[suncatalyst]

im also seeing this bahavior on my Macpro3,1.

with the system loaded to 100% , my temps drop , when i unload the machine , at idle there Higher.

just like like the gentlemen in this thread with a Macpro1,1...

[Steven]

suncatalyst
Fixed in 1.2, will be released soon

[suncatalyst]

Steven,

Thanks for the info.

[Steven]

Fixed in 1.2 version. Available as beta at the moment
