MFC 1.2.0 Unlikely Readings on MacPro1,1

[Mark]

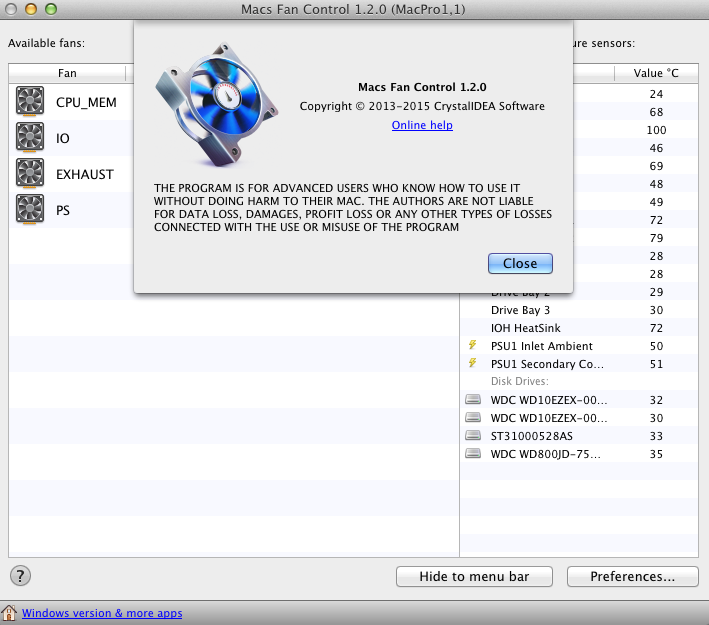

Just upgraded to Macs Fan Control 1.2.0 and get some strange readings. Screen shot attached.
2 quad cores, CPU core 1 is at 100 and CPU core 1 is not listed.

System seems to be working normally.

Please let me know if you need any more information.


Macs Fan Control 1.2.0
MacPro1,1
Intel(R) Xeon(R) CPU X5365 @ 3.00GHz[100]
Mac OS X 10.7

Fans:
CPU_MEM-min{500}curr{499}max{2900}mode{0}
IO-min{500}curr{498}max{2900}mode{0}
EXHAUST-min{500}curr{599}max{2900}mode{0}
PS-min{600}curr{598}max{2800}mode{0}


TempSensors:
TA0P (Ambient) - 23.75
TC0C (CPU A Core 0) - 62
TC0P (CPU Proximity) - 44.9375
TC1C (CPU A Core 1) - 100
TC2C (CPU B Core 0) - 64
TC3C (CPU B Core 1) - 0
TCAH (CPU A HeatSink) - 41.4375
TCBH (CPU B HeatSink) - 44
TH0P (Drive Bay 0) - 27.875
TH1P (Drive Bay 1) - 27.375
TH2P (Drive Bay 2) - 28.125
TH3P (Drive Bay 3) - 29.375
THTG () - 45
TM0P () - 44
TM0S (DIMM Module 1) - 68.5
TM1P () - 50
TM1S (DIMM Module 2) - 75
TM2P () - 48
TM2S () - 71
TM3S () - 65.5
TM8P () - 41
TM8S () - 55.5
TM9P () - 45
TM9S () - 57.5
TMAP () - 43
TMAS () - -1
TMBS () - -1
TN0H (IOH HeatSink) - 69.5
TS0C () - 39.5
Tp0C (PSU1 Inlet Ambient) - 49
Tp1C (PSU1 Secondary Component) - 47.8438
Tv0S () - 26.7148
Tv1S () - 27.2617


Disk drives:
WDC WD10EZEX-00BN5A0 - 32
WDC WD10EZEX-00BN5A0 - 29
ST31000528AS - 33
WDC WD800JD-75MSA3 - 35

--
Regards,
Mark

[vknuckle]

Howdy,

I've also got a Mac Pro 1,1 and noticed the same issue after upgrading. The temp stays locked at 100, and the other core's missing. Readouts are normal in the previous version.
__________________________________________

Macs Fan Control 1.2.0
MacPro1,1
Intel(R) Xeon(R) CPU 5160 @ 3.00GHz[100]
Mac OS X 10.7

Fans:
CPU_MEM-min{500}curr{1699}max{2900}mode{1,1700}
IO-min{500}curr{1699}max{2900}mode{1,1700}
EXHAUST-min{500}curr{1598}max{2900}mode{1,1600}
PS-min{600}curr{1797}max{2800}mode{1,1800}


TempSensors:
TA0P (Ambient) - 23
TC0C (CPU A Core 0) - 48
TC0P (CPU Proximity) - 30.5625
TC1C (CPU A Core 1) - 100
TC2C (CPU B Core 0) - 52
TC3C (CPU B Core 1) - 0
TCAH (CPU A HeatSink) - 25.8125
TCBH (CPU B HeatSink) - 26.3125
TH0P (Drive Bay 0) - 26.5
TH1P (Drive Bay 1) - 26
TH2P (Drive Bay 2) - 26
TH3P (Drive Bay 3) - 25
THTG () - 45
TM0P () - 26
TM0S (DIMM Module 1) - 51.5
TM1P () - 31
TM1S (DIMM Module 2) - 54
TM2P () - 32
TM2S () - 48
TM3S () - 45
TM8P () - 26
TM8S () - 47.5
TM9P () - 30
TM9S () - 55.5
TMAP () - 33
TMAS () - 44
TMBS () - 36
TN0H (IOH HeatSink) - 46
TS0C () - 27
Tp0C (PSU1 Inlet Ambient) - 27
Tp1C (PSU1 Secondary Component) - 28.5625
Tv0S () - 30.1328
Tv1S () - 29.9062


Disk drives:
WDC WD2001FASS-00W2B0 - 32
WDC WD2002FAEX-007BA0 - 30
ST3750640AS - 34

[Steven]

Mark
vknuckle
Can you please provide a screenshot from the previous version?

[vknuckle]

Hi Steven,

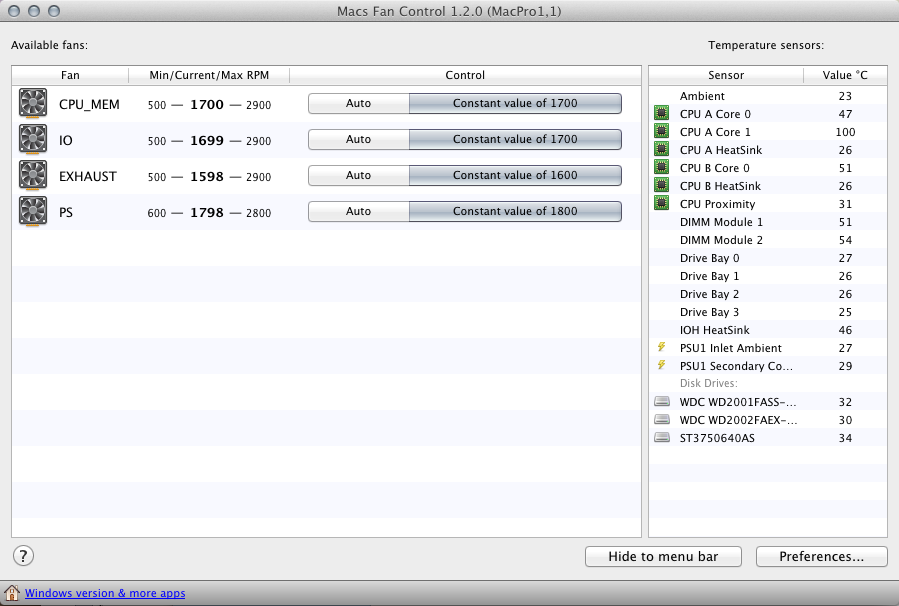

Here's a screenshot from the old version. Diagnostics, too.
__________________________________________

Macs Fan Control 1.1.12.3, MacPro1,1, Mac OS X 10.7

Fans:
CPU_MEM-min{500}curr{1696}max{2900}mode{1,1700}
IO-min{500}curr{1701}max{2900}mode{1,1700}
EXHAUST-min{500}curr{1598}max{2900}mode{1,1600}
PS-min{600}curr{1799}max{2800}mode{1,1800}


TempSensors:
TA0P (Ambient) - 21
TC0C (CPU A Core 0) - 52
TC0P (CPU Proximity) - 28.625
TC1C (CPU A Core 1) - 0
TC2C (CPU B Core 0) - 48
TC3C (CPU B Core 1) - 0
TCAH (CPU A HeatSink) - 24.1875
TCBH (CPU B HeatSink) - 24.6875
TH0P (Drive Bay 0) - 23
TH1P (Drive Bay 1) - 23
TH2P (Drive Bay 2) - 23
TH3P (Drive Bay 3) - 22.5
THTG () - 45
TM0P () - 24
TM0S (DIMM Module 1) - 47.5
TM1P () - 28
TM1S (DIMM Module 2) - 50.5
TM2P () - 30
TM2S () - 45.5
TM3S () - 42.5
TM8P () - 24
TM8S () - 44.5
TM9P () - 27
TM9S () - 51.5
TMAP () - 30
TMAS () - 41.5
TMBS () - 34
TN0H (IOH HeatSink) - 42.5
TS0C () - 25
Tp0C (PSU1 Inlet Ambient) - 25
Tp1C (PSU1 Secondary Component) - 25.7031
Tv0S () - 29.2695
Tv1S () - 28.3672

[Steven]

Thanks for the report.
Let's try 1.2.1 beta: http://www.crystalidea.com/downloads/ma ... l_beta.zip

[vknuckle]

Looks like that may have done the trick. Screencap and diagnostic from the new version below.
__________________________________________

Macs Fan Control 1.2.1
MacPro1,1
Intel(R) Xeon(R) CPU 5160 @ 3.00GHz[80]
Mac OS X 10.7

Fans:
CPU_MEM-min{500}curr{1699}max{2900}mode{1,1700}
IO-min{500}curr{1701}max{2900}mode{1,1700}
EXHAUST-min{500}curr{1599}max{2900}mode{1,1600}
PS-min{600}curr{1799}max{2800}mode{1,1800}


TempSensors:
TA0P (Ambient) - 24.5, 24.5
TC0C (CPU A Core 0) - 29, 51
TC0P (CPU Proximity) - 31.9375, 31.9375
TC1C (CPU A Core 1) - -1, 0
TC2C (CPU B Core 0) - 34, 46
TC3C (CPU B Core 1) - -1, 0
TCAH (CPU A HeatSink) - 27.1875, 27.1875
TCBH (CPU B HeatSink) - 27.9375, 27.9375
TH0P (Drive Bay 0) - 27.5, 27.5
TH1P (Drive Bay 1) - 27.5, 27.5
TH2P (Drive Bay 2) - 27, 27
TH3P (Drive Bay 3) - 26, 26
THTG () - 45, 45
TM0P () - 27, 27
TM0S (DIMM Module 1) - 52.5, 52.5
TM1P () - 32, 32
TM1S (DIMM Module 2) - 55.5, 55.5
TM2P () - 33, 33
TM2S () - 49.5, 49.5
TM3S () - 46.5, 46.5
TM8P () - 28, 28
TM8S () - 49, 49
TM9P () - 31, 31
TM9S () - 56.5, 56.5
TMAP () - 34, 34
TMAS () - 45.5, 45.5
TMBS () - 37.5, 37.5
TN0H (IOH HeatSink) - 45.5, 45.5
TS0C () - 28, 28
Tp0C (PSU1 Inlet Ambient) - 30, 30
Tp1C (PSU1 Secondary Component) - 30.7031, 30.7031
Tv0S () - 31.75, 31.75
Tv1S () - 32.1445, 32.1445


Disk drives:
WDC WD2001FASS-00W2B0 - 33
WDC WD2002FAEX-007BA0 - 31
ST3750640AS - 35

[Steven]

Implemented and available in the latest 1.2.1 version
